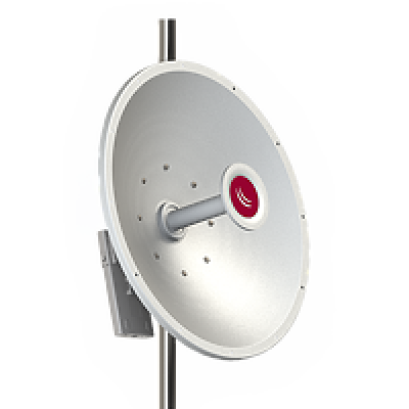

mANT30 : Parabolic dish antenna for 5GHz, 30dBi gain
คุณสมบัติสินค้า:
[ mANT30 PA ] รีวิว จำหน่าย ราคา Mikrotik mANT30 PA คืออุปกรณ์ Parabolic dish antenna 5GHz, 30dBi gain เหมาะสำหรับใช้กับงาน Point to Point ระยะไกล
แบรนด์ : Mikrotik
Share
| Product specifications | |
| Product code | MTAD-5G-30D3 |
| Beamwidth | +/-2.5 deg |
| Certification | CE, ROHS |
| Connector | 2x RP-SMA Female (outside thread) |
| Cross Polarization | >40 dB |
| Diameter x Depth | 70 x 45cm (27.5 x 17.8in) |
| Elevation adjustment range | +/- 20 deg |
| Frequency Range | 4.7-5.875 GHz |
| Front-to-Back Ratio | >30 dB |
| Impedance | 50 ohms |
| Outdoor Rating | ETSI EN 300 019-2-4 |
| Packaged size | 73x73x20cm (29x29x8in) |
| Packaged weight | 7.5 kg (16.5 lbs) |
| Polarization | Vertical and Horizontal |
| Pole Mount Diameter Range | 3 to 7cm (1.2 to 2.75in) |
| Port to Port Isolation | >40dB min |
| Power Rating | 100W |
| Reflector | Aluminum |
| Standards | EN 302 326 DN1, DN2, DN3, DN5 |
| Tested ambient temperature | -50°C to 80°C(-49°F to 158°F) |
| VSWR | ≤ 1.4 typ, ≤ 1.8 max |
| Weight | 4.8kg (10.7 lbs) |
| Wind Load (125 mph) | 181.4kg (400 lbs) at 125 mph, 50 kg at 40 m/s, 28 kg at 30 m/s |
| Wind Survivability | 201kph (125mph) |
