[ SXT LTE6 kit ] รีวิว จำหน่าย ราคา Mikrotik SXT LTE6 คืออุปกรณ์ที่ทำหน้าที่เป็น 2G/3G/4G/LTE CPE มี 2 Sim Slot ที่ทำงานบนระบบปฎิบัติการ RouterOS L3
หมวดหมู่ : Mikrotik ,  LTE/5G products ,
แบรนด์ : Mikrotik
รายละเอียดสินค้า

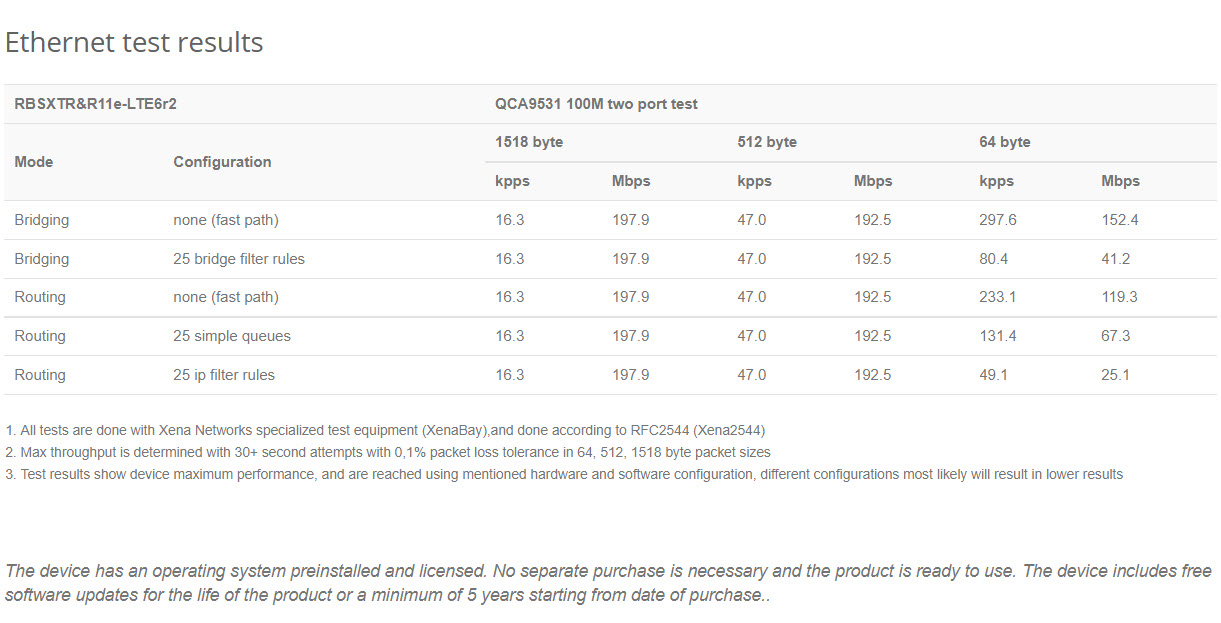

Test Results
Datasheet / Downloads
Specifications | |
Product code | RBSXTR&R11e-LTE6 |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
RouterOS license | 3 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200'000 hours at 25C |
Tested ambient temperature | -30°C to 60°C |
Powering | |
Number of DC inputs | 1 (PoE-IN) |
Max power consumption | 21 W |
Max power consumption without attachments | 7 W |
Cooling type | Passive |
PoE in | 802.3af/at |
PoE in input Voltage | 12-57 V |
PoE-out | |
PoE-out ports | Ether2 |
PoE out | Passive PoE up to 57V |
Max out per port output (input 18-30 V) | 600 mA |
Max out per port output (input 30-57 V) | 400 mA |
Max total out (A) | 600 mA |
Mobile | |
2G Category | Class12 |
2G bands | 2 (1900MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
3G Category | R7 (21Mbps Downlinks, 5.76Mbps Uplink) / R8 (42.2Mbps Downlink, 5.76Mbps Uplink) |
3G bands | 1 (2100MHz) / 2 (1900MHz) / 5 (850MHz) / 8 (900MHz) |
LTE Category | 6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
LTE FDD bands | 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz) |
LTE TDD bands | 38 (2600MHz) / 40 (2300MHz) / 39 (1900MHz) / 41n (2500MHz) |
Ethernet | |
10/100 Ethernet ports | 2 |
Peripherals | |
Number of SIM slots | 2 Modem (Micro SIM) |
MiniPCI-e slots | 1 |
Other | |
Mode button | Yes |
Certification & Approvals | |
Certification | CE, EAC, ROHS |
IP | IP54 |
