*SXTsq 5 High Power - Low-cost High Power small-size 16dBi 5GHz dual chain integrated CPE/Backbone
คุณสมบัติสินค้า:
[ SXTsq 5 ] รีวิว จำหน่าย ราคา Mikrotik SXTsq 5 คืออุปกรณ์ Wireless CPE 5GHz ที่ Integrate Antenna มาให้ในตัว พร้อมกับ WiFi 4 และ RouterOS L4
หมวดหมู่ : Mikrotik , Wireless System ,
แบรนด์ : Mikrotik
รายละเอียดสินค้า

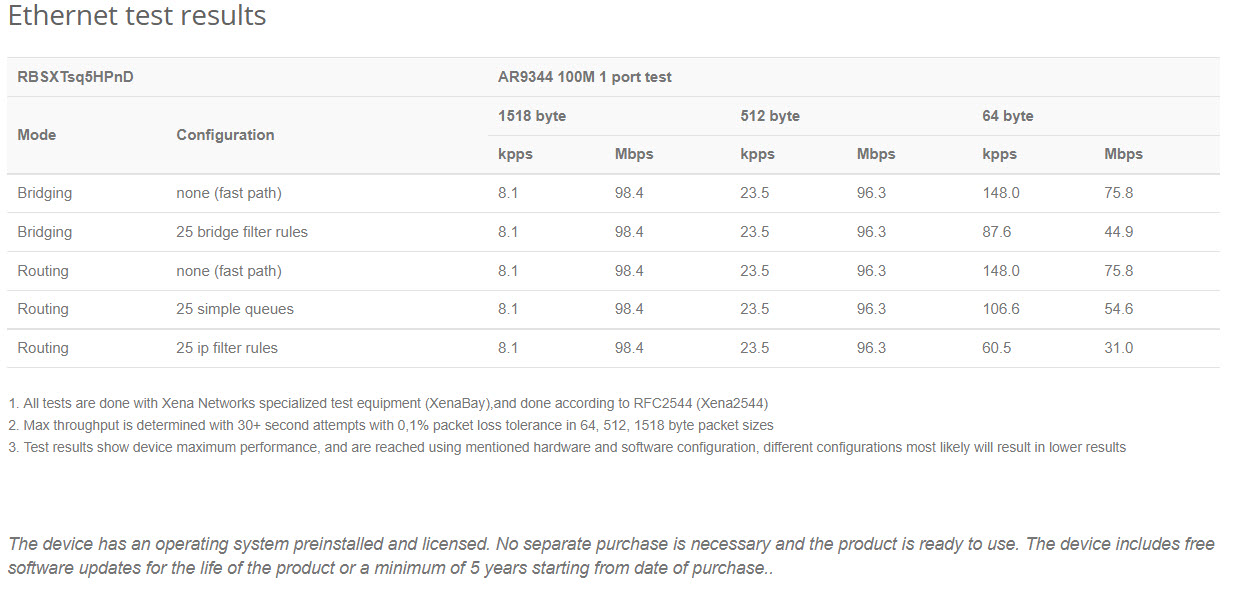

Test Results
Datasheet / Downloads
| Specifications | |
| Product code | RBSXTsq5HPnD |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 129 x 129 x 34 mm |
| RouterOS license | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| MTBF | Approximately 100'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| Powering | |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 7 W |
| Cooling type | Passive |
| PoE in | Passive PoE |
| PoE in input Voltage | 10-28 V |
| Wireless specifications | |
| Wireless 5 GHz Max data rate | 300 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Antenna gain dBi for 5 GHz | 16 |
| Wireless 5 GHz chip model | AR9344 |
| Wireless 5 GHz generation | Wi-Fi 4 |
| Ethernet | |
| 10/100 Ethernet ports | 1 |
| Certification & Approvals | |
| Certification | CE, FCC, IC, EAC, ROHS |
| IP | IP54 |
| Wireless specifications | ||
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
| 6MBit/s | 28 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 28 | -96 |
| MCS7 | 24 | -75 |
